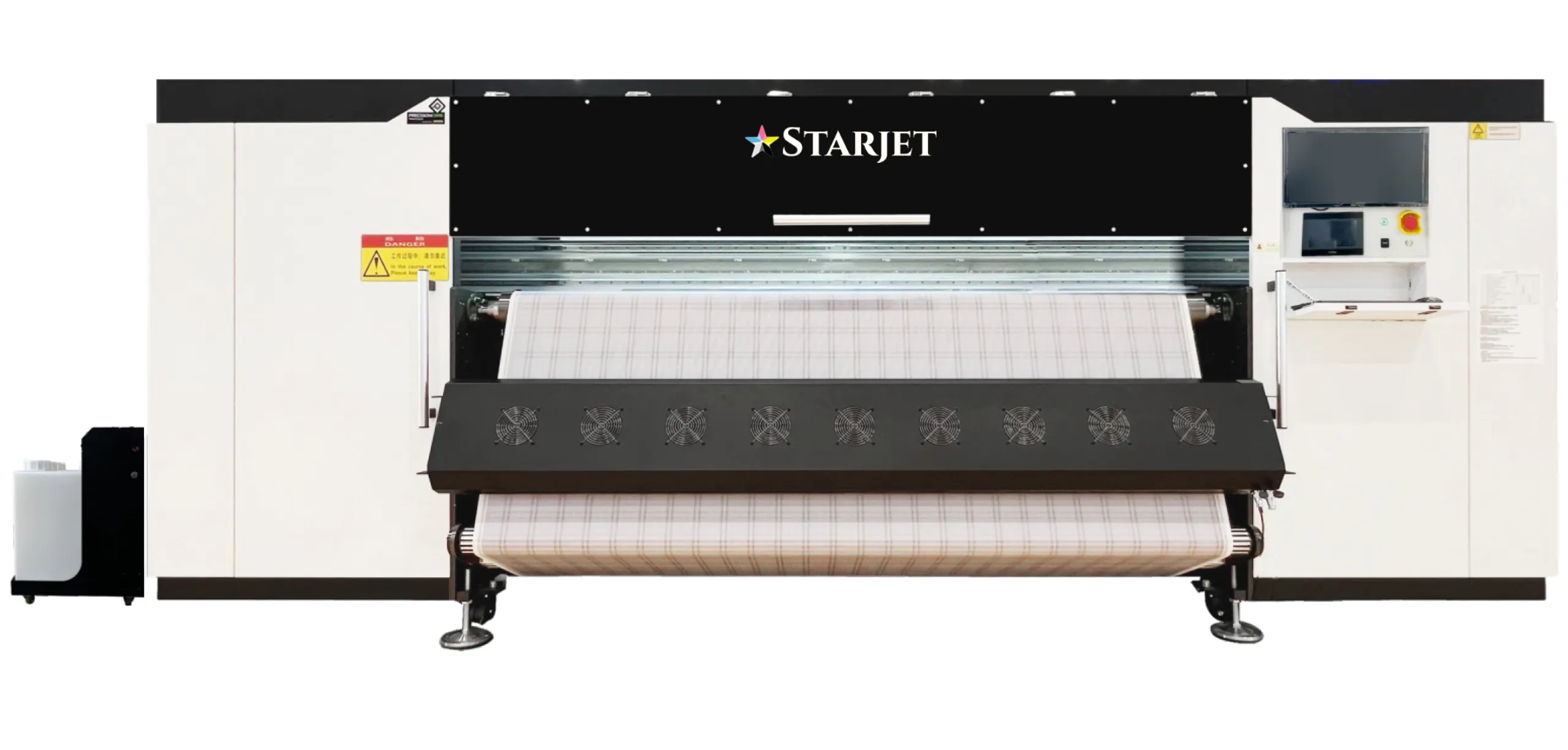

STARJET - F 2224 (24 Heads)
- Industrial design high quality and efficiency
- Wide format digital printing sublimation paper machine F2224
- Epsn i3200-A1 twenty-four head
High production capacity:
Print Speed
1PASS:870㎡/h
2PASS: 440m²/h
Product Features:
|
Parameters :
|
|
|---|---|
|
Printer Model
F 2224 |
Interface
USB3.0 |
|
Print Width
2200mm |
RIP Software
RIIN. MainTop |
|

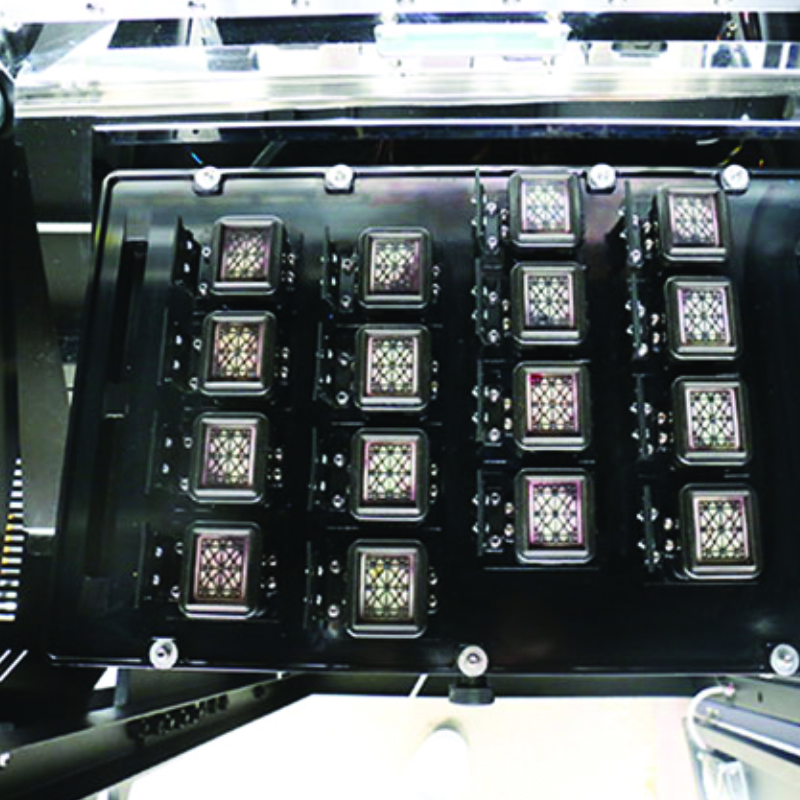

Print head
24 Epsn i3200-A1 Head |
Working Voltage
AC220V / AC380V |
|
Print Speed
1PASS 870㎡/h |
Working environment
Temperature:18-30℃ Humidity: 40-60% |
|
Ink type
Environmentally friendly high-concentration thermal transfer dispersion ink |
Host/Storage size
4490x1460x1880mm/2840x1220x1360mm |
|
Material handling
Air shaft feed up and take up system |
Host/Storage Packaging size
4630×1630×2175mm/3013×1494×1475mm |
|
Roll specifications
2.2m width, 800mm diameter, weighing approximately 1000KG |
Power
Rated power 220V/9KW、Lower drying380V/22KW |
|
Ink bucket configuration
15L*4 |
Equipment weight
2975KG( host2225KG launch750KG ) |
Industry Application:
The STARJET – F 2224 Sublimation Printer is built for mass-production textile printing with exceptional speed and efficiency. Equipped with 24 Epsn i3200-A1 print heads, it produces sharp, vibrant, and consistent results across wide-format fabrics.
With a maximum print speed of 870m²/h (1-pass mode) and a 2200mm wide print area, the F2224 is perfect for large-scale industrial printing. In addition, its eco-friendly disperse sublimation inks ensure brilliant colors while supporting sustainable manufacturing.
Furthermore, the advanced air shaft feed system, high-capacity 15L ink buckets, and powerful drying units (22KW) minimize downtime and guarantee smooth operations.
